LPJ0011GENL RJ45 Modular Jack 1 x 10/100 Mbit Ehternet Cross 13F-64GYDP2NL

Name: LPJ0011GENL RJ45 Modular Jack 1 x 10100 Mbit Ehternet Cross 13F64GYDP2NL
Brand: LINK-PP
Price: 0.05 USD

Buy cheap LPJ0011GENL RJ45 Modular Jack 1 x 10/100 Mbit Ehternet Cross 13F-64GYDP2NL product

Place of Origin : China

Brand Name : LINK-PP

Certification : UL,ROHS,Reach,ISO

Model Number : 13F-64GYDP2NL

MOQ : 50/500/1000/25K

Price : $0.05-$1.28

Packaging Details : 50pcs/tray,1200pcs/carton

Delivery Time : Stock

Payment Terms : TT,NET30/60/90 Days

Supply Ability : 4200K-PCS/Month

Pn# : 13F-64GYDP2NL

Equivalent : LPJ0011GENL

Interface : 10/100Base-T

Samples : Available 2-3 pcs

LED Option : GREEN/YELLOW

File : PDF/3D/ISG/Stp/Step/Datasheet

Contact Now

LPJ0011GENL RJ45 Modular Jack 1 x 10/100 Mbit Ehternet Cross 13F-64GYDP2NL

1. 1 x 10/100 Mbit Ehternet

2. Right Angle Rj45 8 Position

3. Tab-down, LED Inline

4. Hipot from Imput to output : 1500Vrms

Description:

Single Port Modular RJ45 Jack with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number	LPJ0011GENL
YDS Part Number	13F-64ERGYDPZ2NL / 13F-64GYDP2NL
Application-Lan	ETHERNET(NoN PoE)
Contact Mating Area Plating	GOLD 6u"/15u"/30u"
Cores per Port	4
Diodes	NO DIODES
LED Option	GREEN/YELLOW
Latch	TAB DOWN
Number of Ports	1X1
PCB Mount Angle	SIDE ENTRY
Package Height (mm)	13.40
Package Length (mm)	21.30
Package Width (mm)	15.90
Pin Type	THT SOLDER
RoHS Compliant	YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search	YES
Shield EMI Tabs	WITH
Speed	10/100 BASE-T
Temperature	0 TO 70℃
Turns Ratio RX	1CT:1CT
Turns Ratio TX	1CT:1CT

LPJ0011GENL RJ45 Modular Jack 1 x 10/100 Mbit Ehternet Cross 13F-64GYDP2NL

ELECTRICAL SPECFICATIONS: @25℃

1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL:
350uH MIN @ 100KHz 0.1V 8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-30MHz
-15dB MIN @ 30-60MHz
-12dB MIN @ 60-80MHz
-10dB MIN @ 80-100MHz

5.Cross talk:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-40dB MIN @ 30MHz
-35dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot: 1500Vrms
8.LED Lamp:
Wave Length:GREEN/YELLOW:570nm/590nm
Forward Voltage(Vf):
1.8V-2.6V (Test Condition: 20mA)
9.Operating Temperature Range:0℃ TO 70℃

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time

Product Tags:

rj-45 ethernet jack

industrial rj45 connector

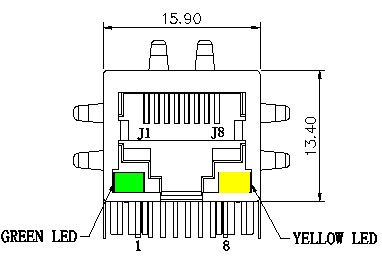

LPJ0011GENL RJ45 Modular Jack 1 x 10/100 Mbit Ehternet Cross 13F-64GYDP2NL Images
